MIL-P-82534(OS)

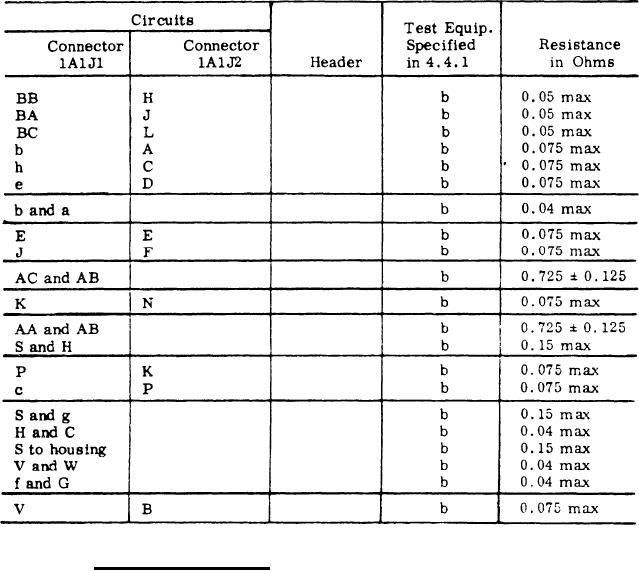

Table I. Programmer Circuit Resistance Requirements (Continued)

3.3.2 Insulation resistance. At a potential of 500 plus or minus 50 volts

DC, the programmer shall have an insulation resistance of not less than 20

megohms between:

a. Each of the eight indendent circuits of connector 1A1J2

b. The eight independent circuits of connector 1A1J2 and the

programmer housing

c. The eight independent circuits of connector 1A1J2 and the shell

of connector 1A1J2
